CE1546L
| Pipe Size: |
|
| Surface Finish: |
|
| Color: |
|
| Dimensions: |
|
| Fit Screen Size: |
|
| Fit Curved TV: |
|
| Mounting Hole Pattern: |
|
| VESA Compatible: |
|
| Max. Mounting Hole: |
|
| Weight Capacity: |
|
| Model Number: |
|
3 days Service Centre Replacement by brand
Free Delivery
Original Brand Product
Lumi
Delivery within 3-5 days via Blue Dart.
Secure Transaction
Share your thoughts with other customers
Maximize viewing flexibility with the PLB-CE1546L full-motion TV ceiling mount, providing exceptional versatility and universal compatibility. Easy assembly, heavy-duty construction, and flexible adjustments ensure an excellent user experience. Its tiltable ceiling plate is designed to adapt to flat and pitched roofs. Ideal for supermarkets, airports, restaurants, conferences, and more.
| Product Category: | TV Ceiling Mount |
| Rank: | Standard |
| Material: | Steel |
| Metal Sheet Thickness: | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet) |
| Pipe Size: | φ40x1.2mm Round Steel Tube,φ48x1.5mm Round Steel Tube (φ1.6"x0.047" Round Steel Tube,φ1.9"x0.059" Round Steel Tube) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 1905x689x154mm (75"x27.1"x6.1") |
| Fit Screen Size: | 43"-86" |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA & Universal |
| VESA Compatible: | 200x200,300x200,400x200,300x300,400x300,400x400,600x400 |
| Max. Mounting Hole: | 610x402 |
| Weight Capacity: | 60kg (132lbs) |
| Strength Tested: | 4 Times Approved |
| Profile: | 1090~1690mm (42.9"~66.5") |

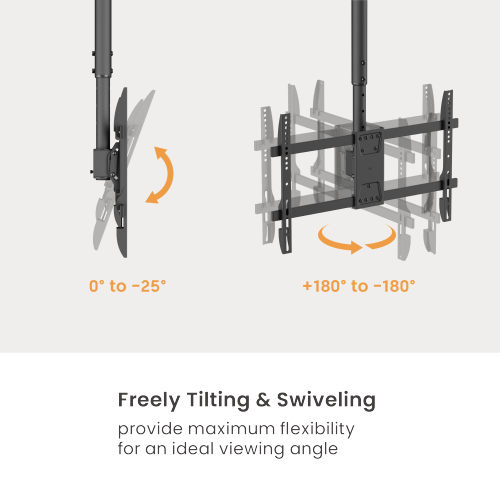

| Tilt Range: | 0°～-25° |
| Swivel Range: | +180°~-180° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | Yes |
| Installation: | Ceiling Mounted |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Direction Indicator: | Yes |

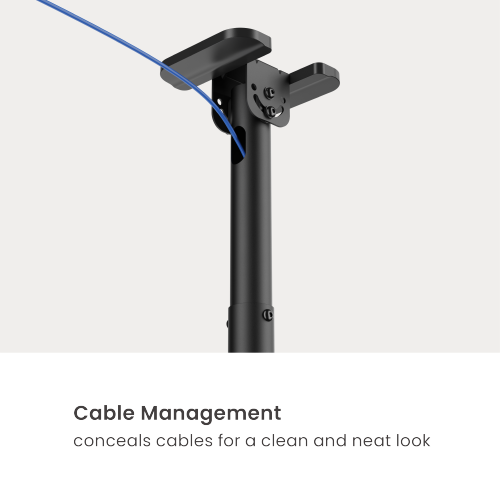

| Cable Management: | Yes |
| Bubble Level: | No |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
