1. Can I connect two 4K monitors at once?
A-Yes, the JCD551 supports dual 4K HDMI output at 60Hz when connected to a host device that supports DisplayPort 1.4 Alt Mode.
2. What type of SSD does the M.2 slot support?
A-The dock supports SATA-based M.2 SSDs (not NVMe), in sizes 2242, 2260, and 2280.
3. Is it compatible with MacBooks and Windows laptops?
A-Yes, the JCD551 works with macOS, Windows, and ChromeOS devices that have a USB-C port with DisplayPort Alt Mode.
4. Can it charge my laptop while connected?
A-Yes, the USB-C PD port delivers up to 100W pass-through charging, allowing you to power your laptop during use.
5. Do I need to install any drivers?
A-In most cases, it’s plug-and-play. For Windows users needing extended dual display functionality, DisplayLink drivers may be required.
6. Can I access all ports at the same time?
A-Yes, you can use all ports simultaneously—including HDMI, SSD, USB, Ethernet, and audio—without performance issues.
7. Is the docking station portable?
A-While designed primarily for desktops, it features a compact and sleek design, making it suitable for portable work setups as well.

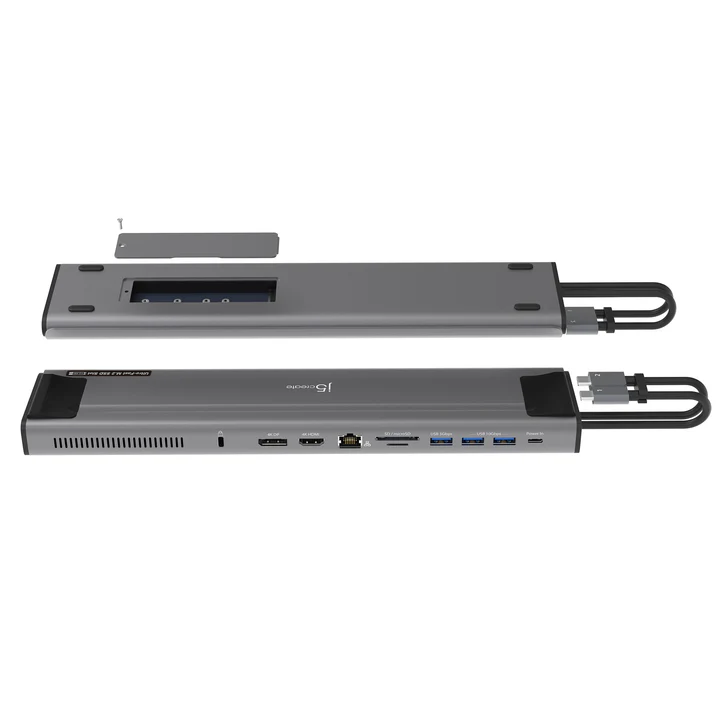

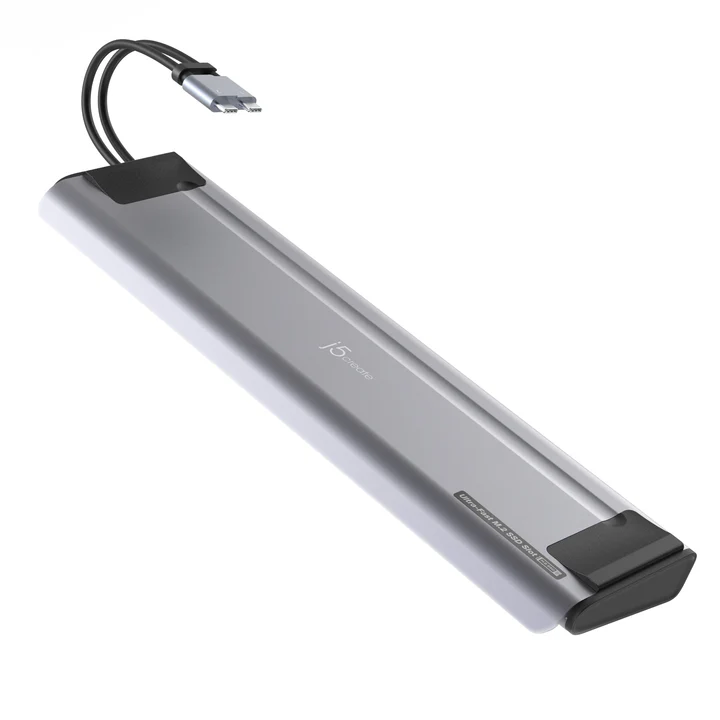

Unleash professional productivity with the j5create JCD551 USB-C® Dual 4K Docking Station, a future-ready workstation solution combining blazing-fast data transfer, SSD expansion, and dual 4K output into one sleek, portable unit.
Equipped with a built-in M.2 SSD slot (supports NVMe® and SATA PCIe® drives), this dock allows you to expand your laptop’s internal storage up to lightning speeds of 925 MB/s (read). Pair that with dual 4K display support via HDMI™ and DisplayPort™, and you’ve got a beast built for multitasking — perfect for creators, editors, and coders.
Three SuperSpeed USB™ ports (1 USB-C® + 2 USB-A at 10Gbps) and one USB-A 5Gbps port ensure seamless connectivity for external drives, devices, or audio interfaces. The included 100W Power Delivery passthrough charges your device while powering peripherals simultaneously.
Its detachable magnetic USB-C cable system (2-port host) is tailor-made for laptops like Surface Pro® 9/10/11, Microsoft Copilot™ devices, and high-end MacBooks (including M2/M3 Pro/Max).
| Product Type | USB-C® Dual 4K Docking Station with M.2 SSD Slot |
| Host Connector | 2 x USB-C® Male |
| Video Output Ports | 1 x HDMI™ Female (4K @ 60Hz) 1 x DisplayPort™ Female (4K @ 60Hz) |
| Audio Support | Yes (2.1 channel via HDMI™ / DisplayPort™) |
| Network Interface | 1 x RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| USB Ports | 1 x USB-C® 3.2 Gen 2 1 x USB-C® Power Delivery 3.0 (Up to 100W) 2 x USB™ Type-A 3.2 Gen 2 1 x USB™ Type-A 3.2 Gen 1 |
| Card Reader | 1 x SD™ & microSD™ 3.0 memory card reader/writer |
| Storage Expansion | 1 x M.2 Slot (Supports NVMe® / SATA SSDs) Write: up to 900 MB/s Read: up to 925 MB/s |
| Displays Supported | 2 (Dual 4K @ 60Hz output) |
| Max Display Resolution | 3840 x 2160 (4K UHD) |
| Max Refresh Rate | 60 Hz |
| Max Data Transfer Rate | 10 Gbps (USB 3.2 Gen 2) |
| Power Delivery | Up to 100W via USB-C® |
| Power Source | Bus-powered |
| Power Input | 20V / 5A |
| Power Output | 20V / 5A |
| Power Consumption | ≤ 600 mA |
| Security | 1 x Security Lock Slot |
| Enclosure Material | Aluminum |
| Color | Grey & Black |
| Cable Length | 0.6 in. (15 cm) |
| Product Dimensions | Depth: 12.5 in. (318 mm) Width: 3.14 in. (80 mm) Height: 1.02 in. (26 mm) |
| Product Weight | 0.83 lbs. (378 g) |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Operating Humidity | < 85% (non-condensing) |
| Storage Humidity | < 85% (non-condensing) |
