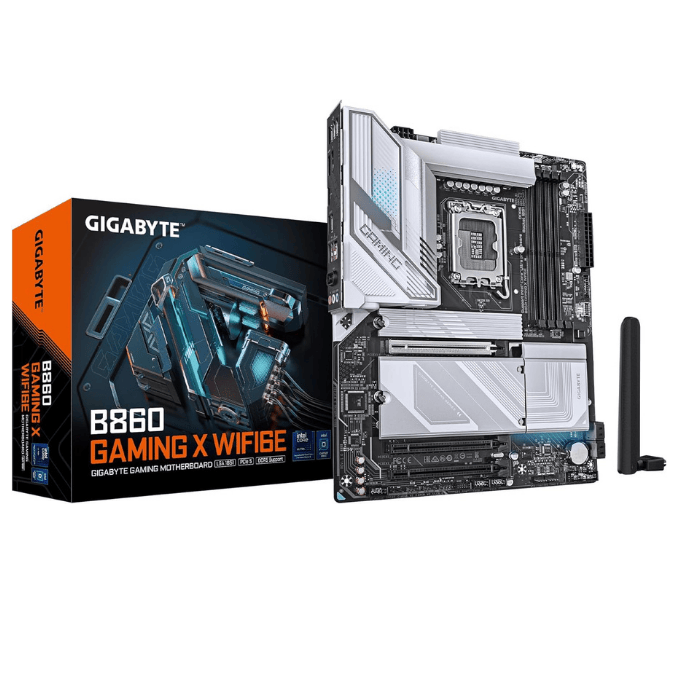

The GIGABYTE B860 Gaming X WIFI6E is a high-performance ATX motherboard built for Intel Core Ultra Series 2 processors on the new LGA 1851 socket. Designed for gamers and power users, it delivers strong performance with a 12+1+2+1 phase VRM design, support for up to 256GB of ultra-fast DDR5 memory at speeds up to 9066MT/s, and next-generation storage options including three M.2 slots with PCIe 5.0 and PCIe 4.0 support. Connectivity is equally powerful, featuring 2.5GbE LAN, integrated WiFi 6E, Bluetooth, and a versatile rear I/O with USB4 Type-C, HDMI, and DisplayPort. Enhanced with GIGABYTE’s EZ-Latch tool-less installation system, M.2 Thermal Guards, and extended heatsinks, it ensures efficient cooling and easy assembly. With its modern features, durable build, and gamer-centric design, this motherboard is an excellent foundation for building a future-ready gaming PC or performance workstation.
Technical details
| Category | Details |
| Model | GIGABYTE B860 Gaming X WIFI6E |
| Form Factor | ATX |
| CPU Socket | LGA 1851 (Intel Core Ultra Series 2 support) |
| Chipset | Intel B860 |
| Power Design (VRM) | 12 + 1 + 2 + 1 Twin Hybrid Digital VRM |
| Memory Support | 4 × DDR5 DIMM, up to 256GB, dual-channel |
| Memory Speed | Up to 9066 MT/s (OC/XMP) |
| PCIe Slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x1 |
| M.2 Slots | 1 × PCIe 5.0 M.2, 2 × PCIe 4.0 M.2 |
| SATA Ports | 4 × SATA 6Gb/s |
| Networking (LAN) | 2.5GbE LAN |
| Wireless | WiFi 6E + Bluetooth (5.3) |
| Rear Display Outputs | 1 × HDMI, 1 × DisplayPort |
| USB Ports (Rear I/O) | USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal Headers | Multiple fan headers, RGB/ARGB, front USB support |
| Cooling Features | VRM heatsinks, M.2 Thermal Guard, extended heatsinks |
| Special Features | EZ-Latch tool-less PCIe & M.2 installation, RGB Fusion |
| Audio | High-definition audio codec (Realtek) |
| Build Quality | 6-layer PCB, integrated I/O shield |
