B0-BHT8-GNYK
Brand | ASUS |
CPU Socket | Socket AM5 |
Compatible Devices | Personal Computer |
RAM Memory Technology | DDR5 |
Compatible Processors | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
3 days Replacement by Brand Service Center
Free delivery
Original Brand Product
Asus
Delivery within 3-5 days via Blue Dart
Secure Transaction
Share your thoughts with other customers
|
|
|
---|---|---|

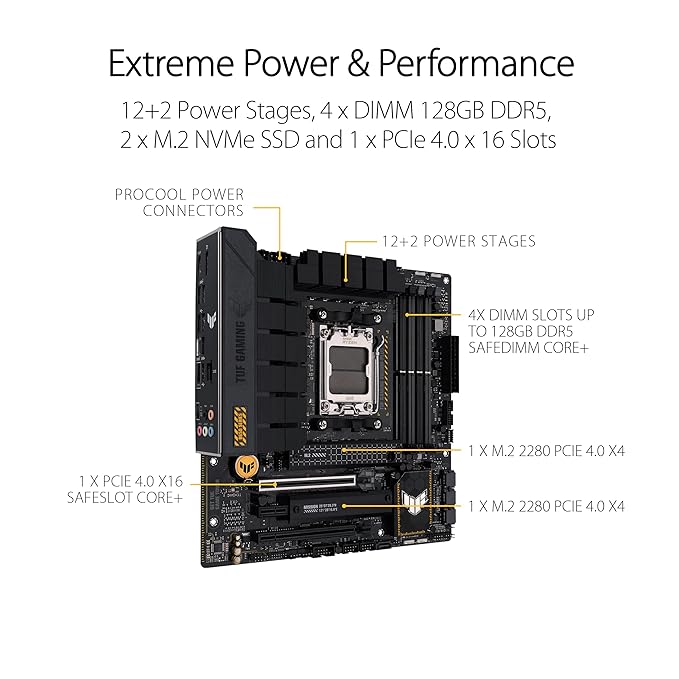

PCIE 5.0 M.2TUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds. |

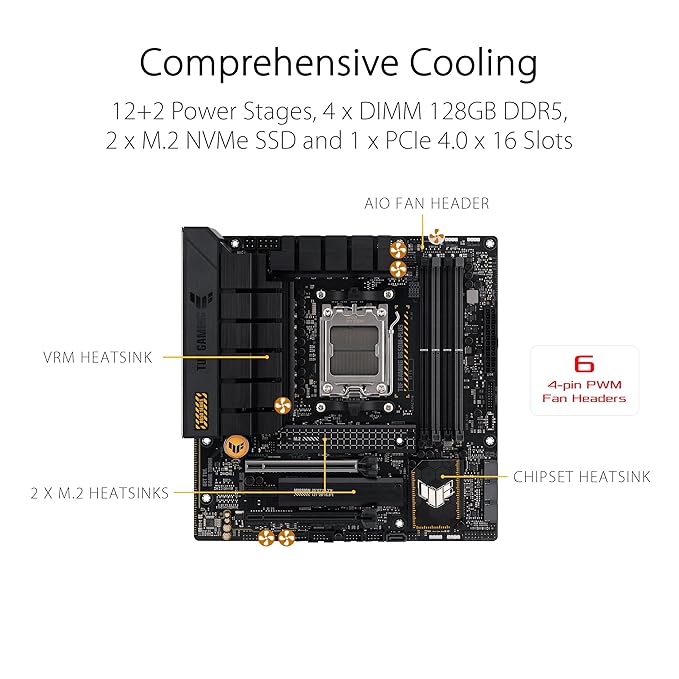

COOLING1. Enlarged VRM Heatsink The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation. 2. Optimized M.2 Heatsink Design All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability. |

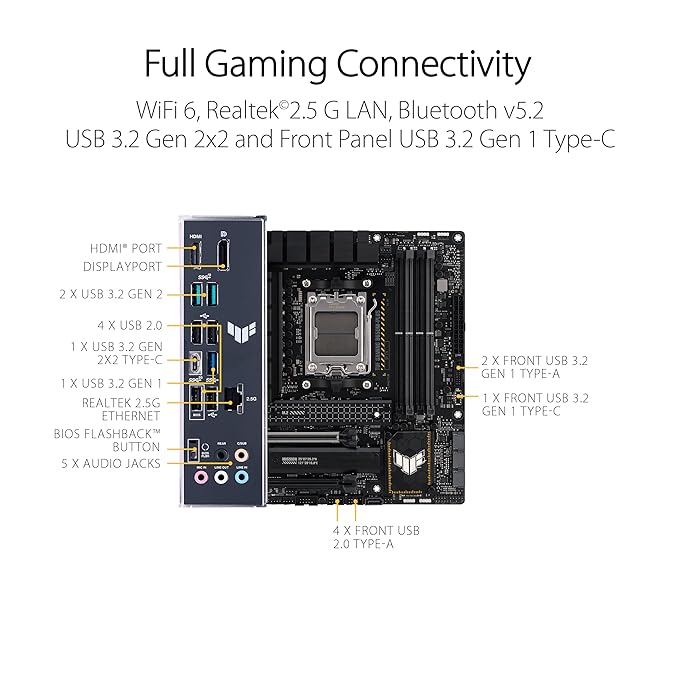

CONNECTIVITYTUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt (USB4) expands compatibility and bandwidth even further. |
|
|
|
---|---|---|
TUF GAMING ALLIANCETUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger. |
M.2 Q-LATCHThe innovative Q-Latch makes it easy to in stall or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. |
NETWORKING2.5 Gb Ethernet 2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. |
Feature | Details |
Customer Reviews | 2.1 out of 5 stars (2 ratings) |

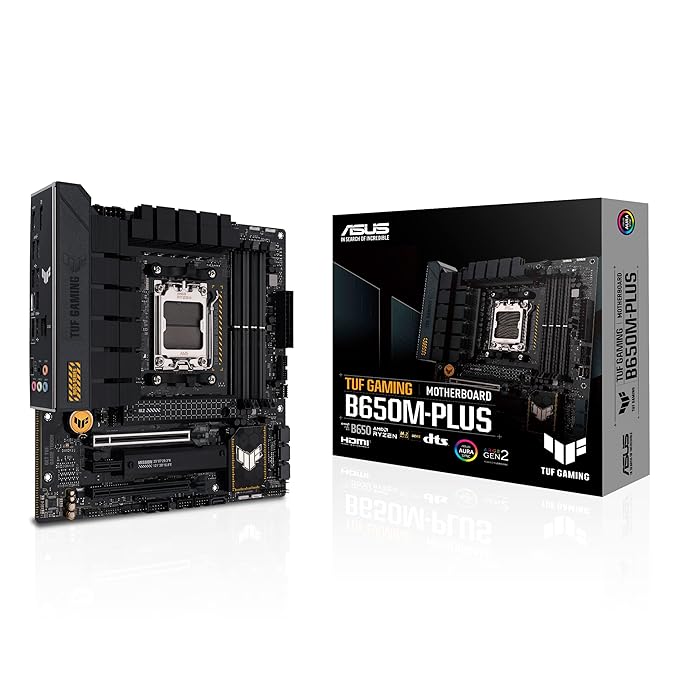

Model Name | TUF GAMING B650M-PLUS |
Best Sellers Rank | #157,308 in Computers & Accessories, #1,204 in Motherboards |
ASIN | B0BHT8GNYK |
Model Number | 90MB1BG0-M0IAY0 |
Brand Name | ASUS |
Manufacturer | ASUS, ASUS GLOBAL PTE LTD, SINGAPORE |
USB 2.0 Ports | 2 |
S/PDIF Connector Type | Optical |
Memory Slots Available | 4 |
Chipset Type | AMD B650 |
Processor Socket | Socket AM5 |
RAM Memory Maximum Size | 128 GB |
Total HDMI Ports | 1 |
Number of Ethernet Ports | 1 |
System Bus Standard Supported | SATA 3 |
Platform | Windows 11, Windows 10 |
Total USB Ports | 14 |
Total PCIe Ports | 2 |
Compatible Devices | Personal Computer |
Memory Clock Speed | 5600 MHz |
Graphics Card Interface | PCI Express |
Compatible Processors | AMD Ryzen™ 7000 Series Desktop Processors (Socket AM5) |
Drive/Memory Storage Capacity | 128 GB |
Number of Ports | 4 |
RAM Memory Technology | DDR5 |
Main Power Connector Type | 24-Pin |
